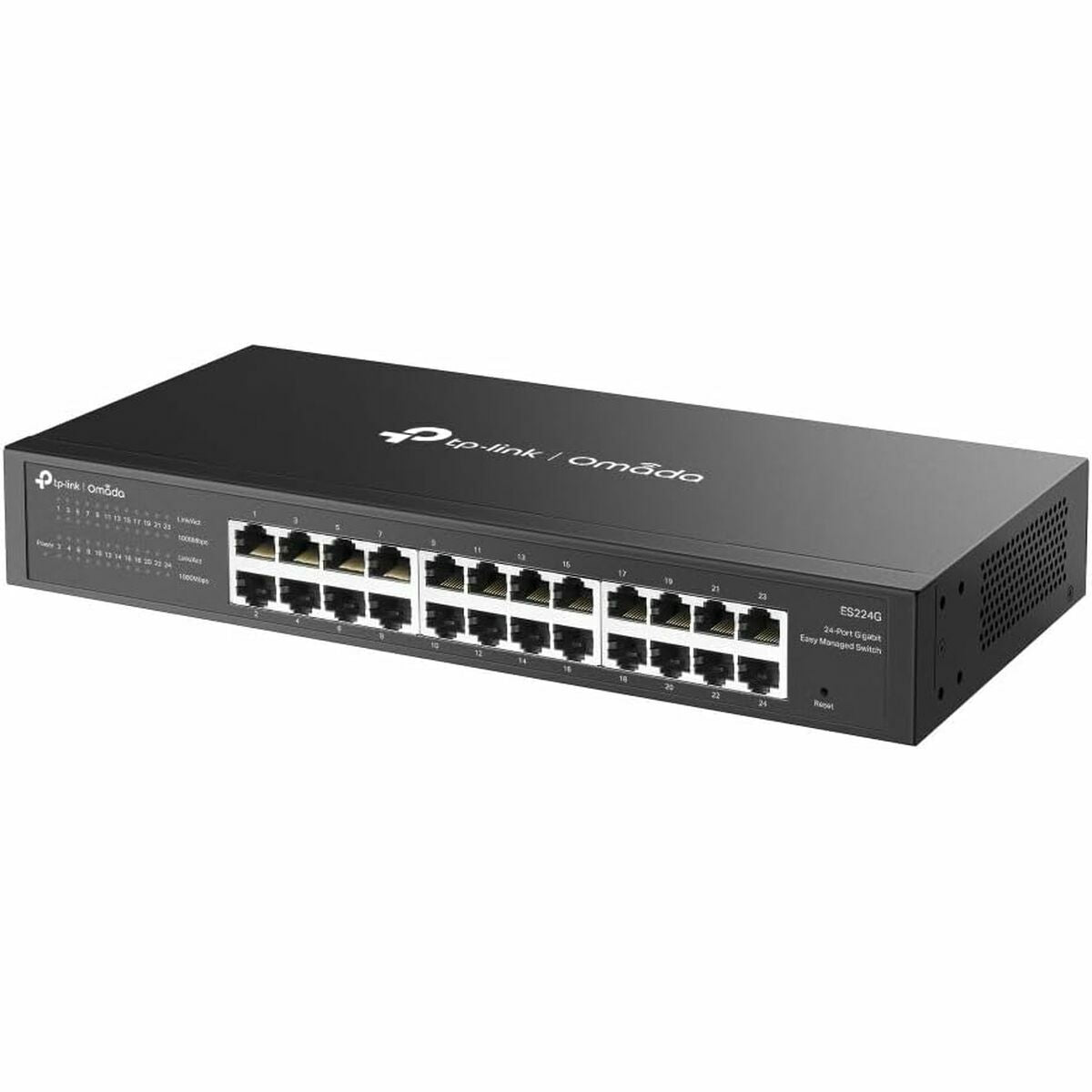

Switch TP-Link ES224G

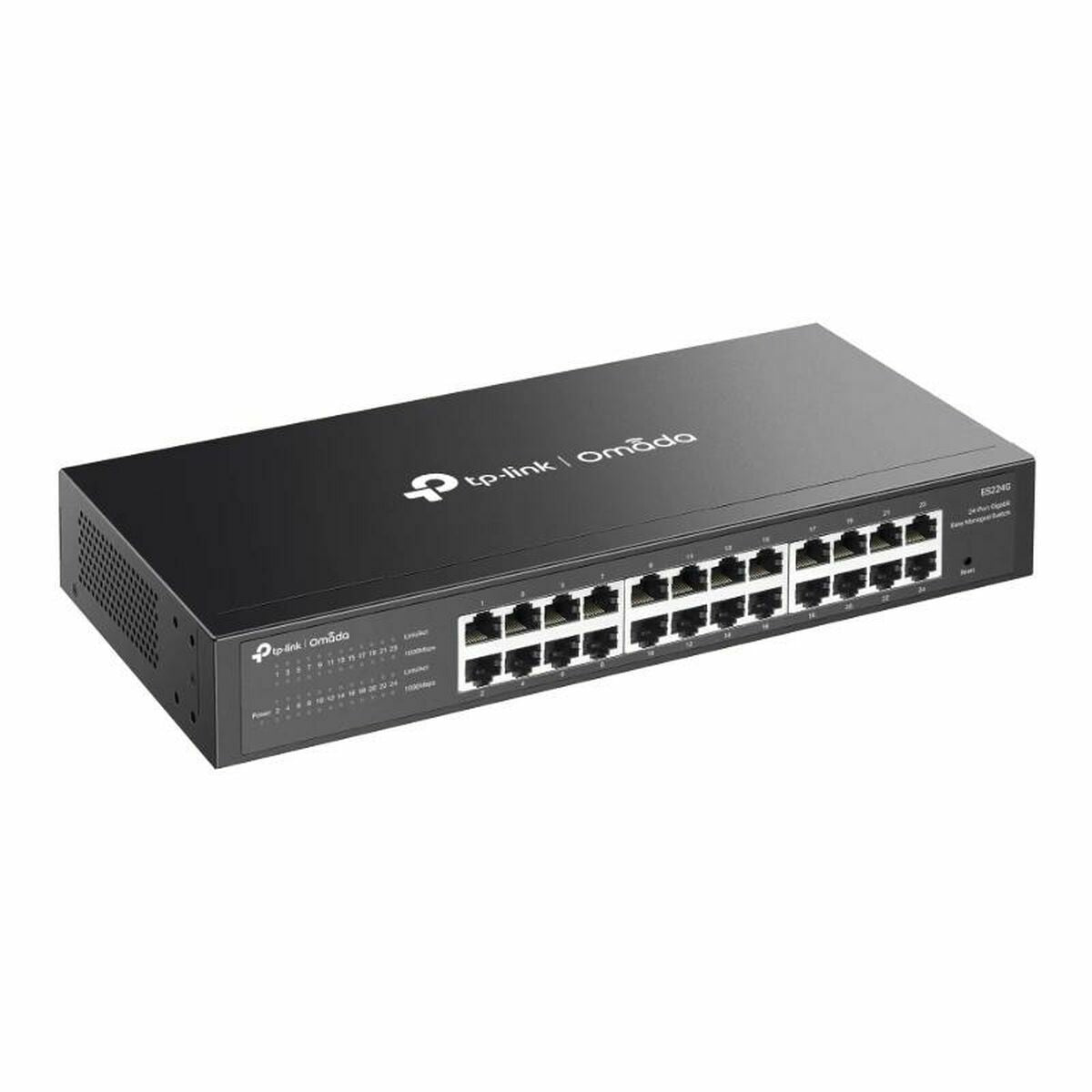

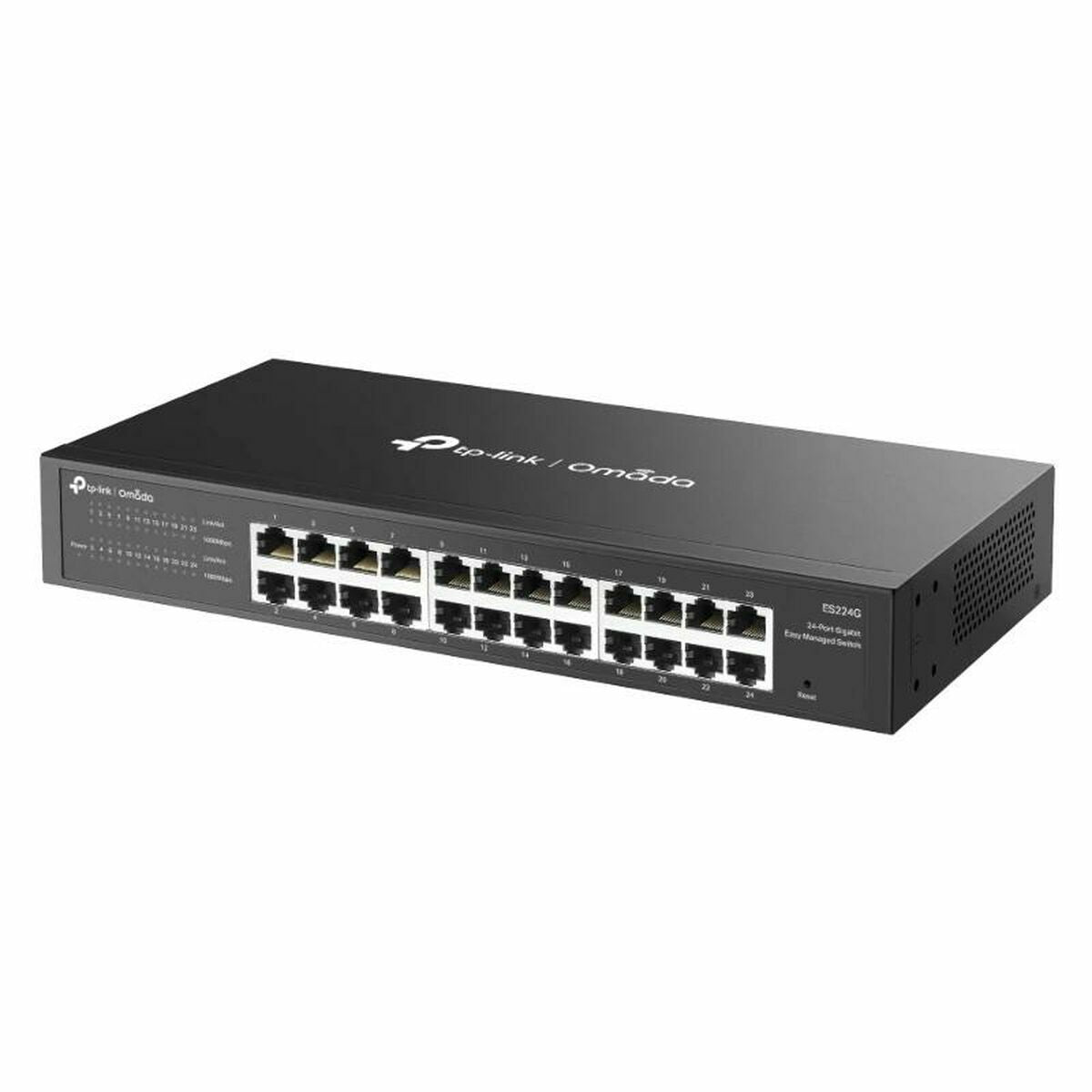

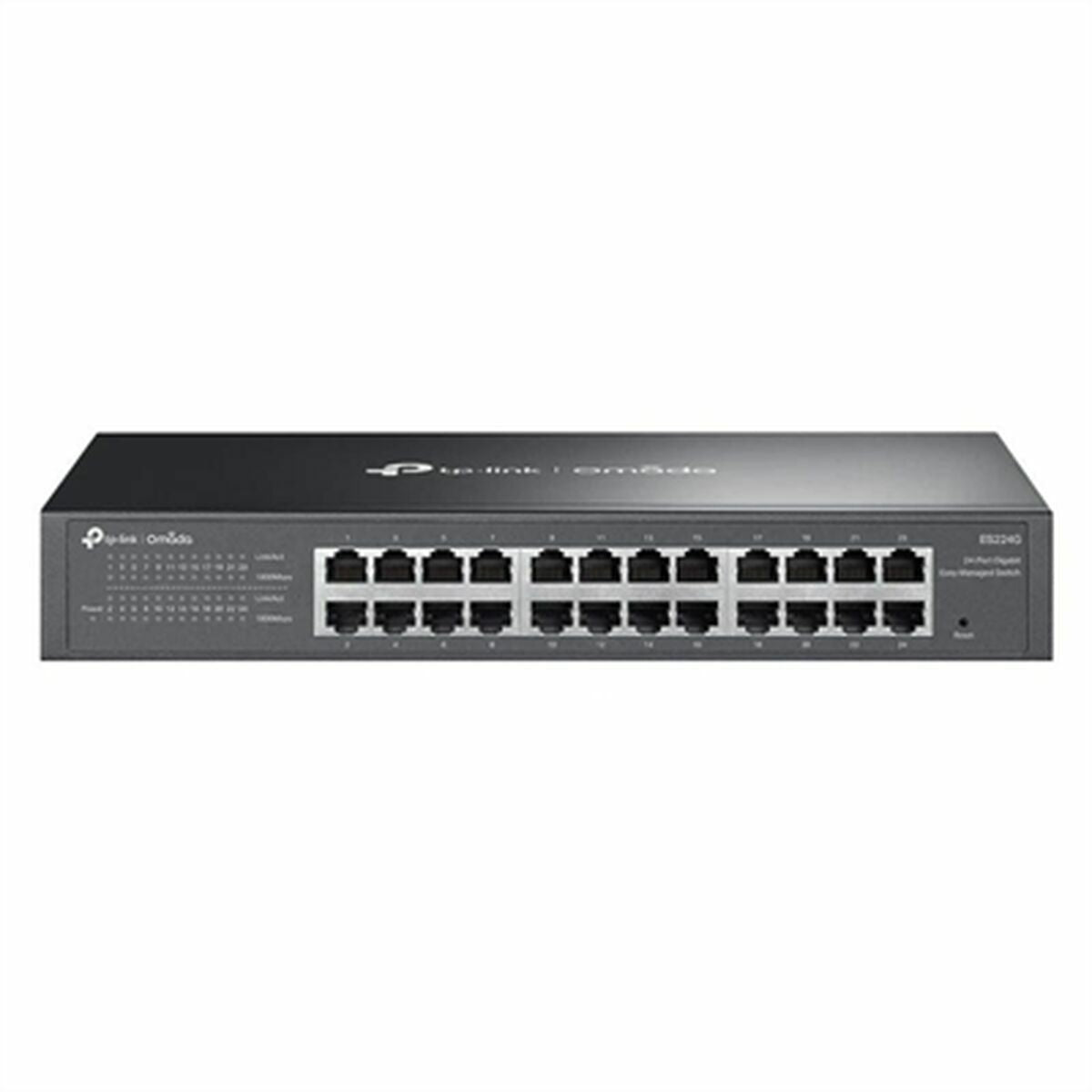

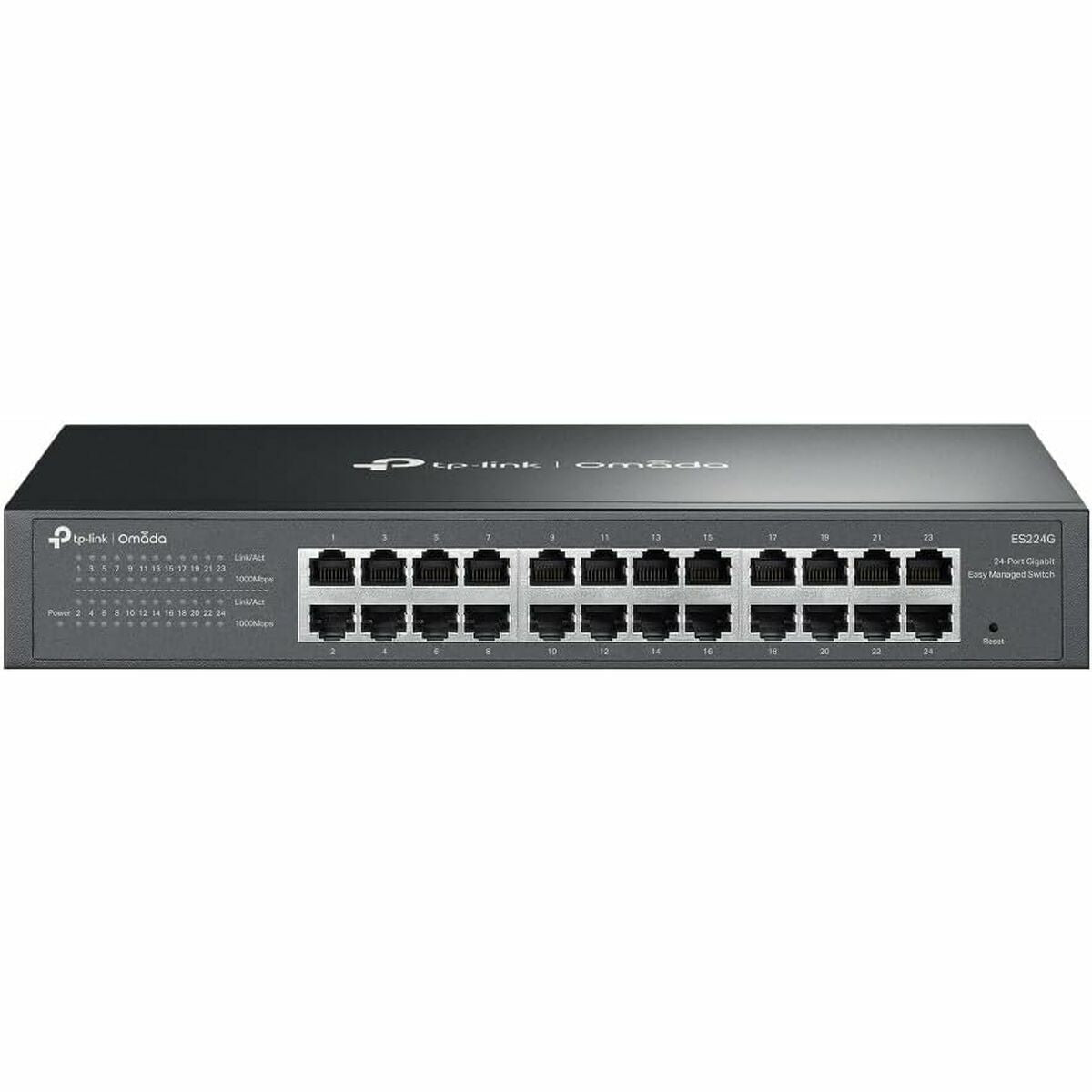

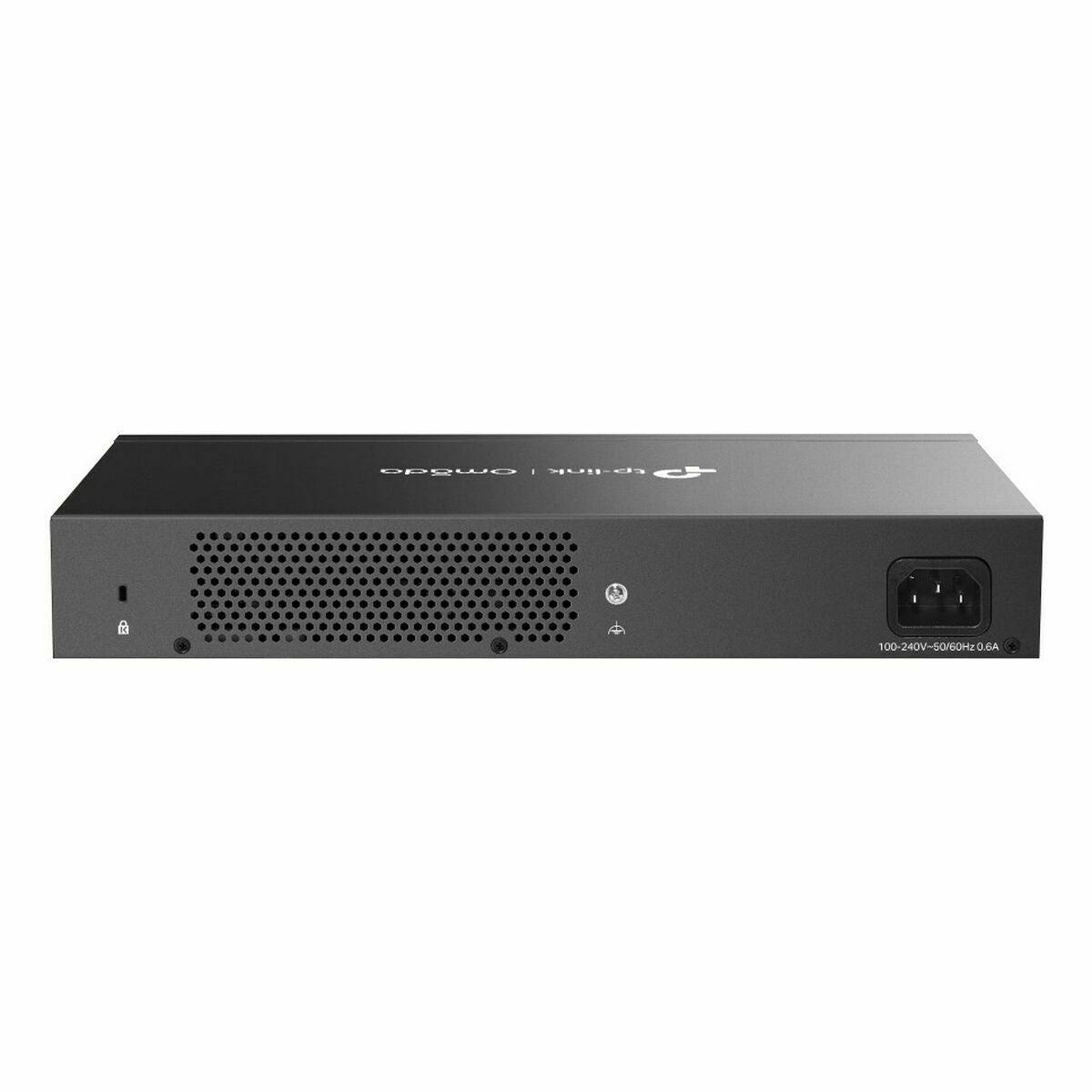

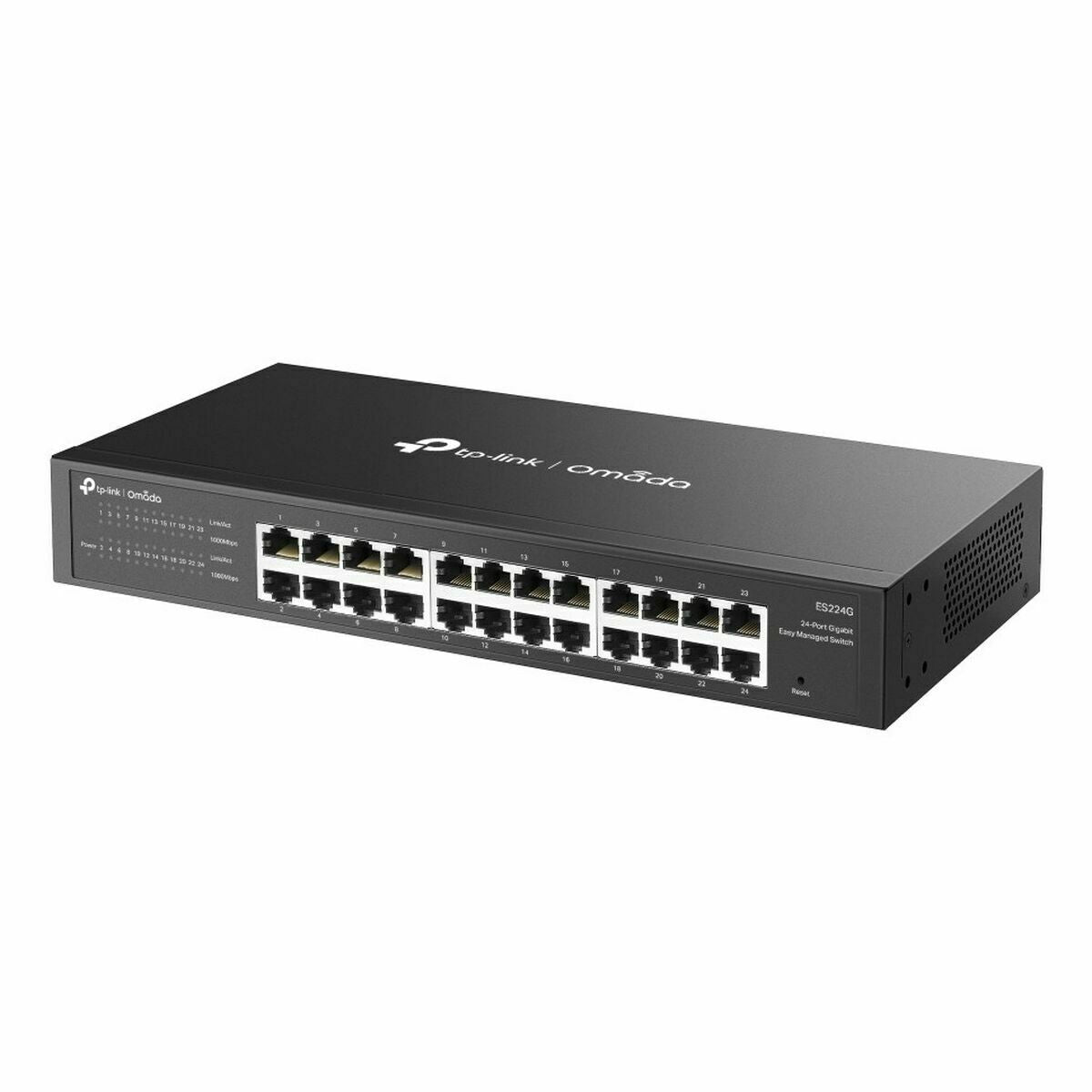

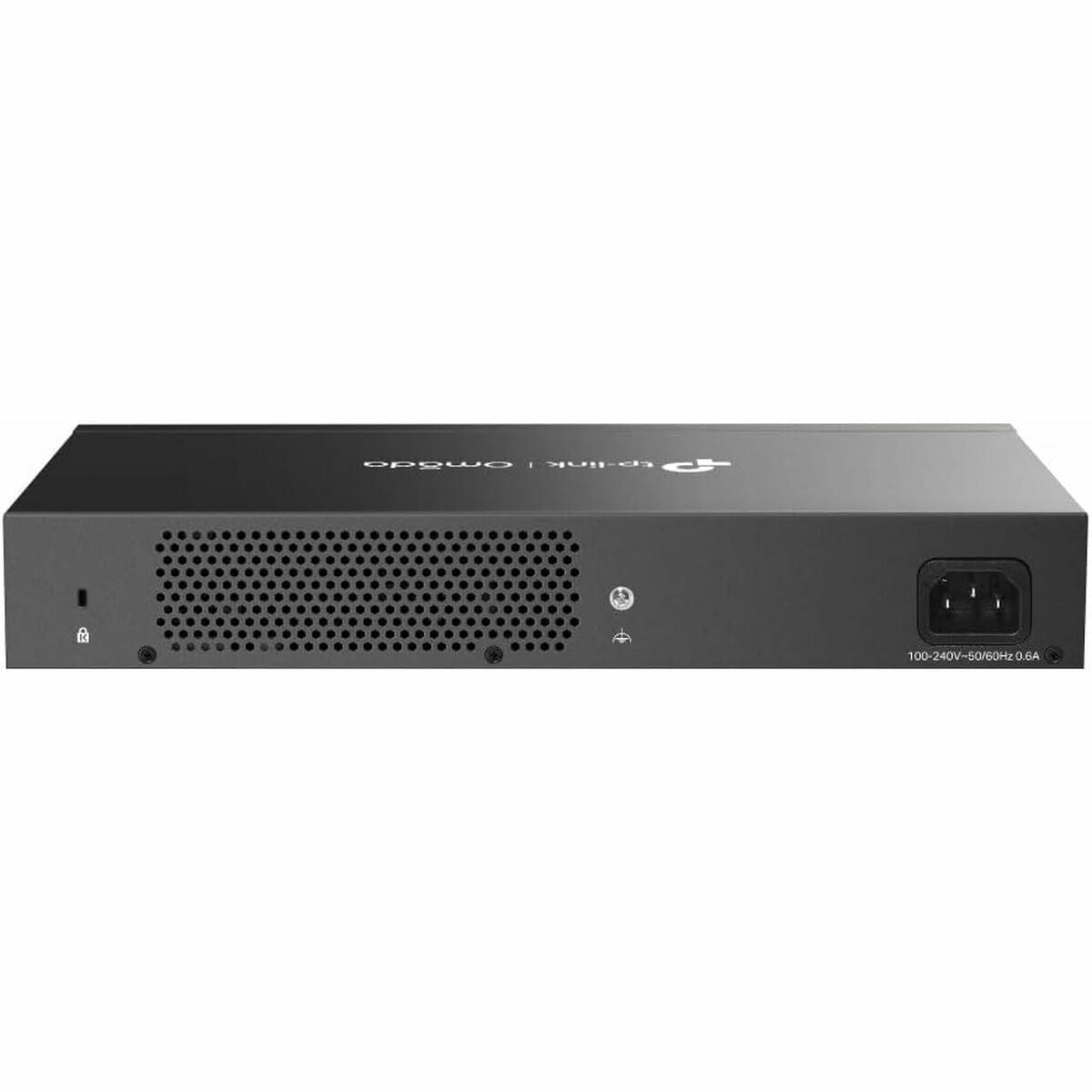

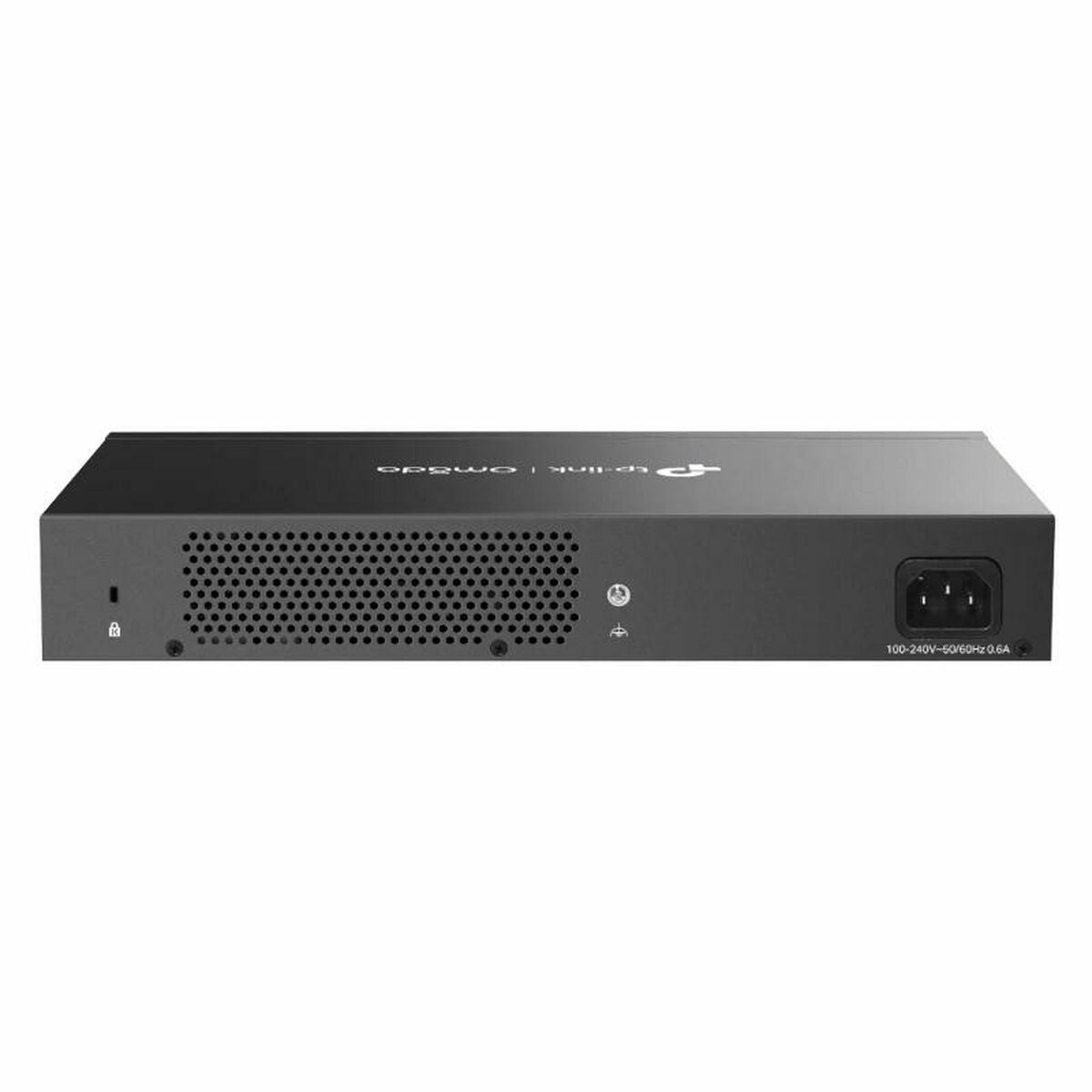

The TP-Link ES224G switch is a network device designed for professional environments requiring efficient and stable connectivity. This unit features 24 RJ45 Gigabit Ethernet 10/100/1000 Mbps ports with auto-negotiation and automatic MDI/MDIX support, ensuring compatibility and high-speed data transmission. Its robust black metal design provides durability and allows installation on a desktop or rack mounting, including a physical security lock for added protection. The fanless switch ensures silent, dust-free operation, powered by a wide-range power supply (100-240 V) with ±6kV surge protection to prevent electrical damage. For management and control, the ES224G integrates with TP-Link’s Omada platform, offering centralized administration via hardware, software, or cloud controllers, along with advanced features such as cable diagnostics, batch upgrade and configuration, automatic device detection, and secure remote access. Performance-wise, it offers a switching capacity of 48 Gbps and a packet forwarding rate of 35.7 million packets per second, supported by a 4 Mbit buffer memory and an 8,000-entry MAC address table, optimizing traffic even in high-density networks. It also includes advanced Layer 2 features like static link aggregation, loop prevention and detection, 802.3x flow control, and port mirroring for traffic monitoring and analysis. It supports port-based and 802.1Q VLANs with up to 32 groups, and QoS control with priority queues and weighted assignment to optimize bandwidth according to traffic needs. Traffic management features include broadcast, multicast, and unknown unicast storm control, plus IGMP snooping (v1/v2/v3) to optimize multicast handling in IP networks. The device supports jumbo frames up to 15 KB, improving efficiency for large packet transmission. Environmentally, it operates within a wide temperature range (-5 ºC to 50 ºC) and humidity conditions, maintaining stable performance and reliability. Its compact dimensions (294 × 140 × 44 mm) facilitate integration into various workspaces. The package includes the ES224G switch, power cable, rubber feet, mounting brackets, screws, and installation guide for quick setup. This model meets the demands of medium-sized businesses and networks requiring a managed Gigabit switch with high performance, flexible management, and reliable operation under varied conditions.

• Type of plug: Plug EU
• Product with plug: Yes
• Type:
  • Switch
  • Cupboard
• Power supply:
  • Cable
  • CA cable
  • Iincluded
• Voltage:
  • 100-240 V
  • 100 - 240 V
• Depth: 140 mm
• Frequency: 50-60 Hz
• Feeding dish included: Yes
• Connectivity: Gigabit Ethernet
• AC input voltage: 100-240 V
• Height: 4,4 cm
• Length: 14 cm
• Certificate:
  • CE
  • RoHS
• Speed: 1 Gbps
• Ports: 24
• Colour: Black
• Holder: Multi-support
• Connections:
  • Ethernet LAN
  • RJ45 x 24
• AC input frequency: 50-60 Hz
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Includes: User manual
• Safety: IGMP
